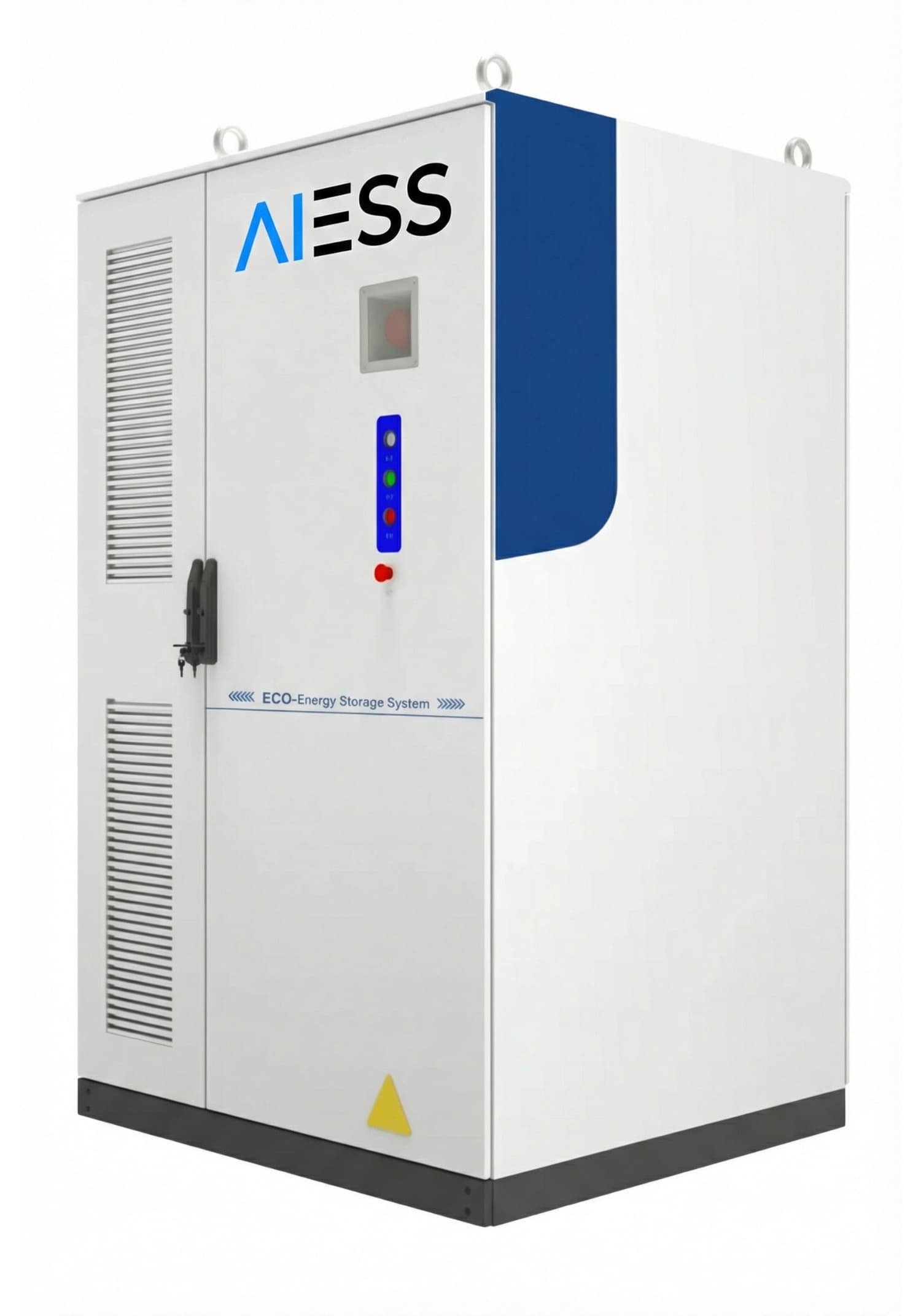

All-in-one cabinet 418 kWh
Optimal solution for PV farms and large industrial projects on 690V and 800V grids.
Technical specification
| Parameter | Value | Description |
|---|---|---|
| System type | All-in-one cabinet (battery + inverter) | Complete cabinet with liquid cooling |
| Cell type | LFP 314Ah | Lithium iron phosphate cells |
| Usable capacity | 418 kWh | 1P416S configuration |
| Rated AC power | 100 – 215 kW | 100 kW (400V) / 215 kW (690V / 800V) |
| AC Voltage | 400V / 690V / 800V | 690V and 800V — standard for PV farms and industry |
| Rated DC voltage | 1331,2 V | Battery DC voltage |
| DC voltage range | 1164,8 V – 1497,6 V | Battery operating range |
| System efficiency | 89% | Max. round-trip efficiency |
| Cycle life | ≥ 8 000 cykli | Long battery lifespan |
| Cooling system | Liquid cooling + forced air | PACK-level liquid cooling + forced air cooling |
| Protection rating | IP55 | Dust and water protection |
| Fire suppression | Aerosol | PACK-level fire protection |
| Operating temperature | -25°C do +55°C | Derating above 45°C |
| Dimensions (W×D×H) | 1500 × 1350 × 2400 mm | Compact cabinet — only 2 m² footprint |
| Weight | 3 800 kg | Total cabinet weight |
| Noise | ≤ 80 dB | Noise level |
| Communication | Modbus TCP/IP | Communication interface |
| Scalability | Modular — parallel expansion | Flexible parallel configuration |
| Grid code | EN50549-1/-2, PN-EN-50549-1/-2 | Compliance with Polish and European grid requirements |
| Certificates | UN38.3, IEC62619, IEC63056, IEC62477-1 | Safety and EMC certificates |
Voltage variant comparison
| DC Side | |||
|---|---|---|---|
| A40 | A69 | A80 | |
| Cell type | LFP / 314 Ah | ||
| Pack configuration | 52.248 kWh / 1P52S | ||
| System configuration | 418 kWh / 1P416S | ||
| Rated DC voltage | 1331.2 V | ||
| DC voltage range | 1164.8 ~ 1497.6 V | ||
| Max. charge/discharge rate | 0.25 P | 0.5 P | 0.5 P |
| Max. depth of discharge | 100% (25 ± 2 °C) | ||
| AC Side | |||
| A40 | A69 | A80 | |
| Rated output power | 100 kW | 215 kW | 215 kW |
| Rated AC voltage | 400 V | 690 V | 800 V |
| AC voltage range | -15% ~ +10% | ||
| Grid type | 3W+PE | ||
| Rated frequency | 50 Hz / 60 Hz | ||
| Power factor | 0.99 / -1 ~ +1 | ||
| THDi | ≤ 3% | ||
| General | |||
| Max. round-trip efficiency | 89% | ||
| Cycle life | ≥ 8 000 | ||
| Communication | Modbus TCP/IP | ||
| Fire suppression | Aerosol | ||
| Ingress rating | IP55 | ||
| Cooling | Liquid cooling + forced air cooling | ||
| Operating temperature | -25°C ~ 55°C (derating above 45°C) | ||
| Anticorrosion rating | C4 (C5 optional) | ||
| Humidity | 0 ~ 95% RH | ||
| Noise | ≤ 80 dB | ||
| Altitude | 3000 m (derating above 2000 m) | ||
| Dimensions (W×D×H) | 1500 × 1350 × 2400 mm | ||
| Weight | 3 800 kg | ||
| Safety / EMC | UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4 | ||
| Grid code | EN50549-1/-10, EN50549-2/-10, PN-EN-50549-1/-2 | ||
