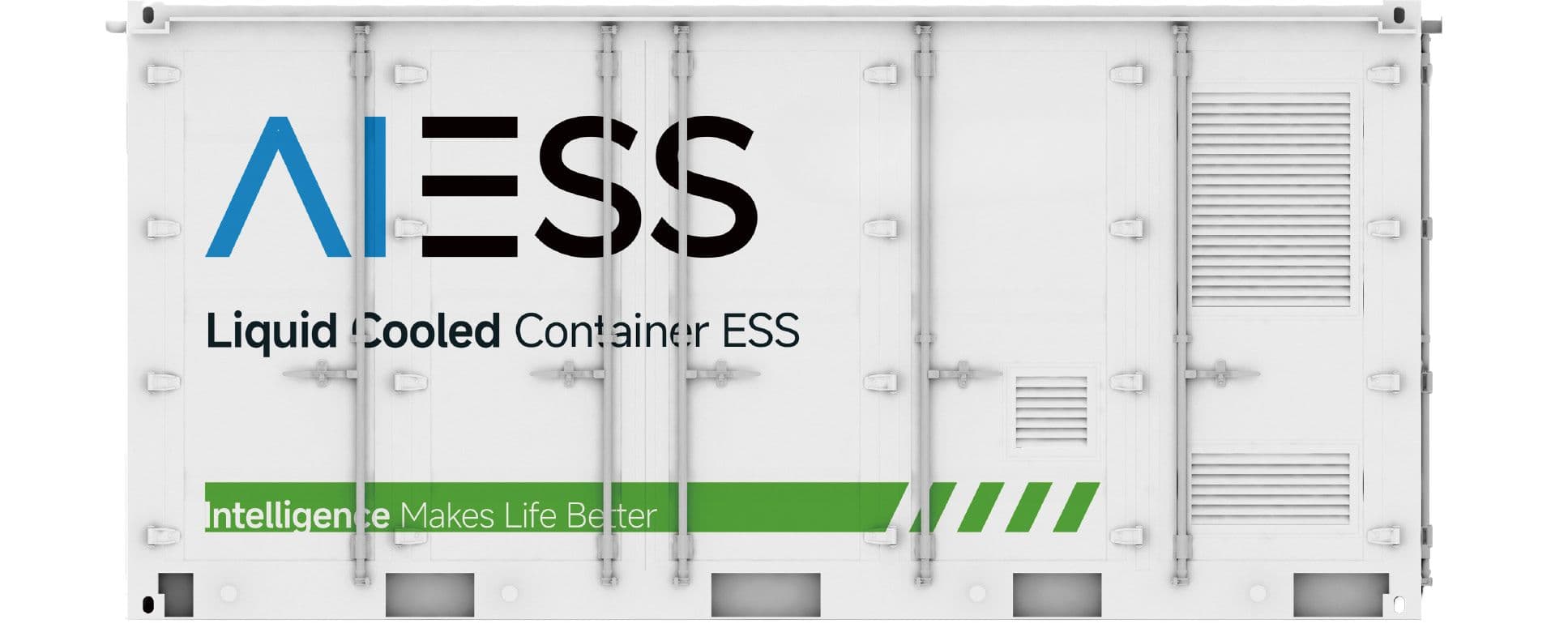

Container battery system 3.85 MWh
Technical specification for battery container (battery-only, no inverter).
Technical specification
| Parameter | Value | Description |
|---|---|---|
| System type | Kontenerowy pakiet bateryjny (bez inwertera) | 20' container with batteries, works with external PCS |
| Cell type | LFP 314Ah | Lithium iron phosphate cells |
| Usable capacity | 3,85 MWh | Rated energy |
| Rated power | 2 MW | Continuous power (with external PCS) |
| Inverter compatibility | 1 MW do 2,5 MW na kontener | AIESS inverters up to 2.5 MW |
| Rated DC voltage | 1228,8 V | Battery DC voltage |
| DC voltage range | 1075,2 V – 1382,4 V | Battery operating range |
| Construction | Kontener 20' – zintegrowana, transportowalna | Gotowy do transportu |
| System efficiency | >89% | Max. round-trip efficiency |
| Scalability | Unlimited | Unlimited expansion |
| Operating temperature | -20°C do +50°C | Operating range |
| Cooling system | Liquid cooling | Liquid cooling |
| Protection rating | IP55 | Dust and water protection |
| Container dimensions | 6058×2438×2591 mm | Standard 20' container |
| Weight | 36 000 kg | Total container weight |
| Noise | <75 dB (1 m od systemu) | Noise level at 1 m distance |
| Communication | LAN, CAN, RS485 · Modbus TCP | Interface and protocol |
| Warranty | 10 lat / 8000 cykli | Battery warranty |
| Certificates | CE, UL, NC RfG, IEC 62619, UL 9540A | Safety and grid compliance certificates |
