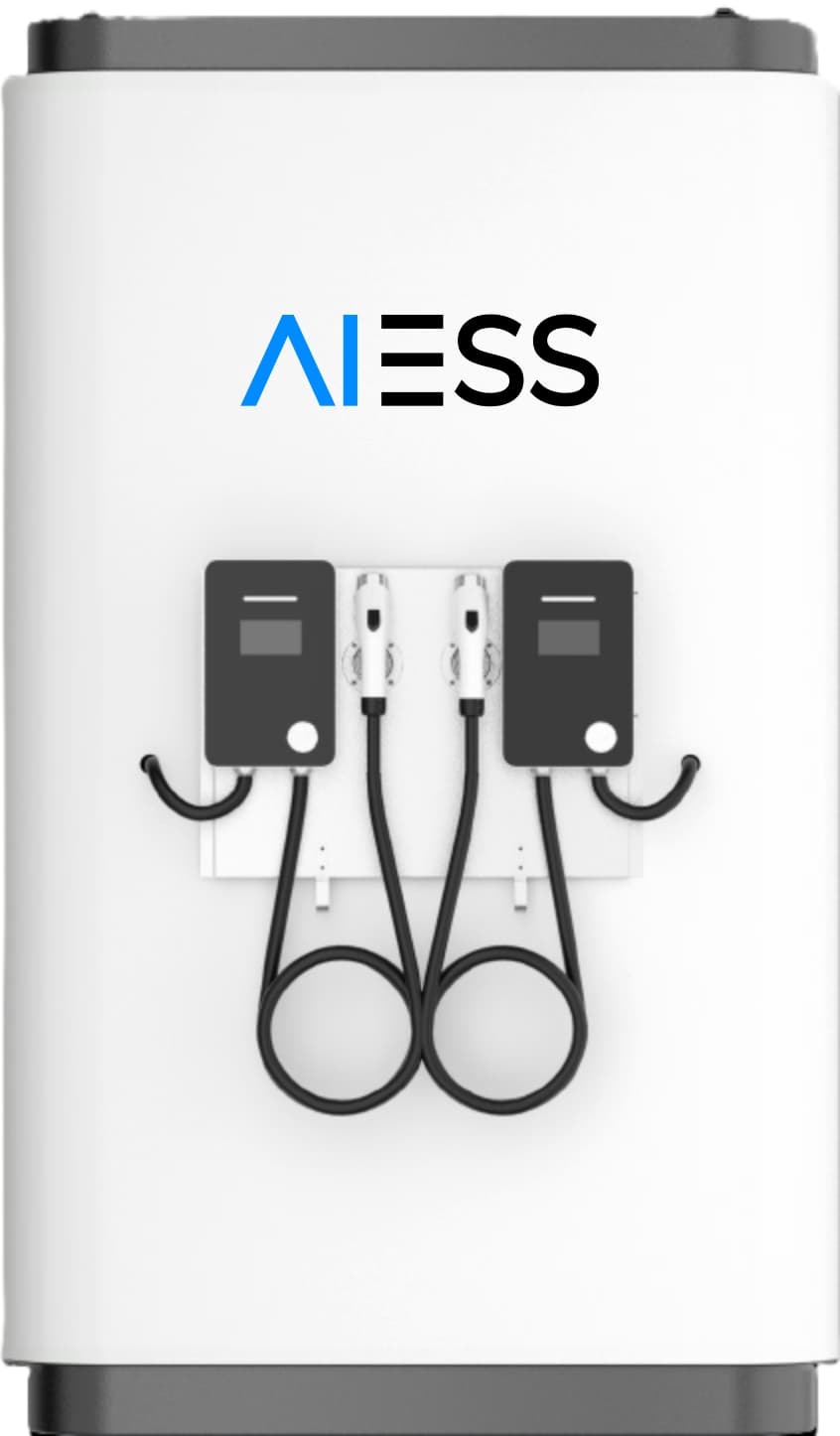

Hybrid Cabinet with MPPT, STS, ATS
Technical specification for 125 kW / 192 kWh hybrid cabinet with PV, generator and EV charger.
Technical specification
| Parameter | Value | Description |
|---|---|---|
| Cell type | LFP | Lithium iron phosphate cells |
| Rated capacity | 192.92 kWh | Rated energy |
| Rated power | 125 kW | Continuous charge/discharge power |
| Inverter type | Hybrid | On-grid + PV + Off-grid |
| Maximum PV power | 60 kWp (MPPT) | Built-in MPPT controller |
| STS (Static Transfer Switch) | Yes | Automatic grid/island switching |
| ATS (Automatic Transfer Switch) | Yes | Generator backup connection |
| EV Charger | 2× 22 kW | Built-in vehicle charging sockets |
| DC voltage range | 480~700.8 V | Battery DC voltage range |
| AC Voltage | 400 V | 3-phase, 50/60 Hz |
| System efficiency | >89% | Round-trip efficiency |
| Protection rating | IP55 | Dust and water protection |
| Corrosion protection grade | C4H | Industrial environment resistance |
| Cooling system | Liquid cooling | Liquid cooling and heating |
| Noise | <75 dB (1 m) | Noise level at 1 m distance |
| Operating temperature | -30°C do +55°C | Derating above 45°C |
| Humidity | 0~95% (non-condensing) | Operating humidity range |
| Dimensions (W×D×H) | 1800×1435×2392 mm | Cabinet external dimensions |
| Communication | Ethernet / Modbus TCP/IP | Communication interface and protocol |
| Cycle life | ≥8000 | Cycles at 100% DoD |
| EMS | Built-in | Energy management system |
| Scalability | 1–8 jednostek | Expansion up to 1000 kW |
| Warranty | ≥5 lat / 8000 cykli | System warranty |
| Certificates | IEC 62619, IEC 60730-1, IEC 63056, IEC 62477, IEC 61851, CE, UN 38.3, TÜV, DNV | Safety and EMC certificates |
| Grid code | EN50549, VDE-AR-N 4105/4110/4120, G99, CEI 0-21 | European grid code compliance |
